Apex Height:
Minimum 88” (2240mm). Eaves 76” (1930mm)
Door:
Single 30”x70” (760mm x 1780mm). Top third glazed and glazing bars. Antique style wrought iron door furniture or chrome furniture with no glazing bars.
Window:
30″ x 24″ (750mm x 610mm)
Verandah:
Optional
Cladding:
Tongue and groove loglap 1″ x 4″ (25mm x 100mm)
Framing:
Eased edge 1½” x 3” (38mm x 75mm)
Roof:
½” (11mm) OSB board
Roofing felt:
20kg green polyester mineral felt
Floor:
¾” (18mm) plyboard
Floor joists:
1½”x2” (38mm x 50mm)
Lining:
Breathable membrane
Options:
Opening windows, torch on felt

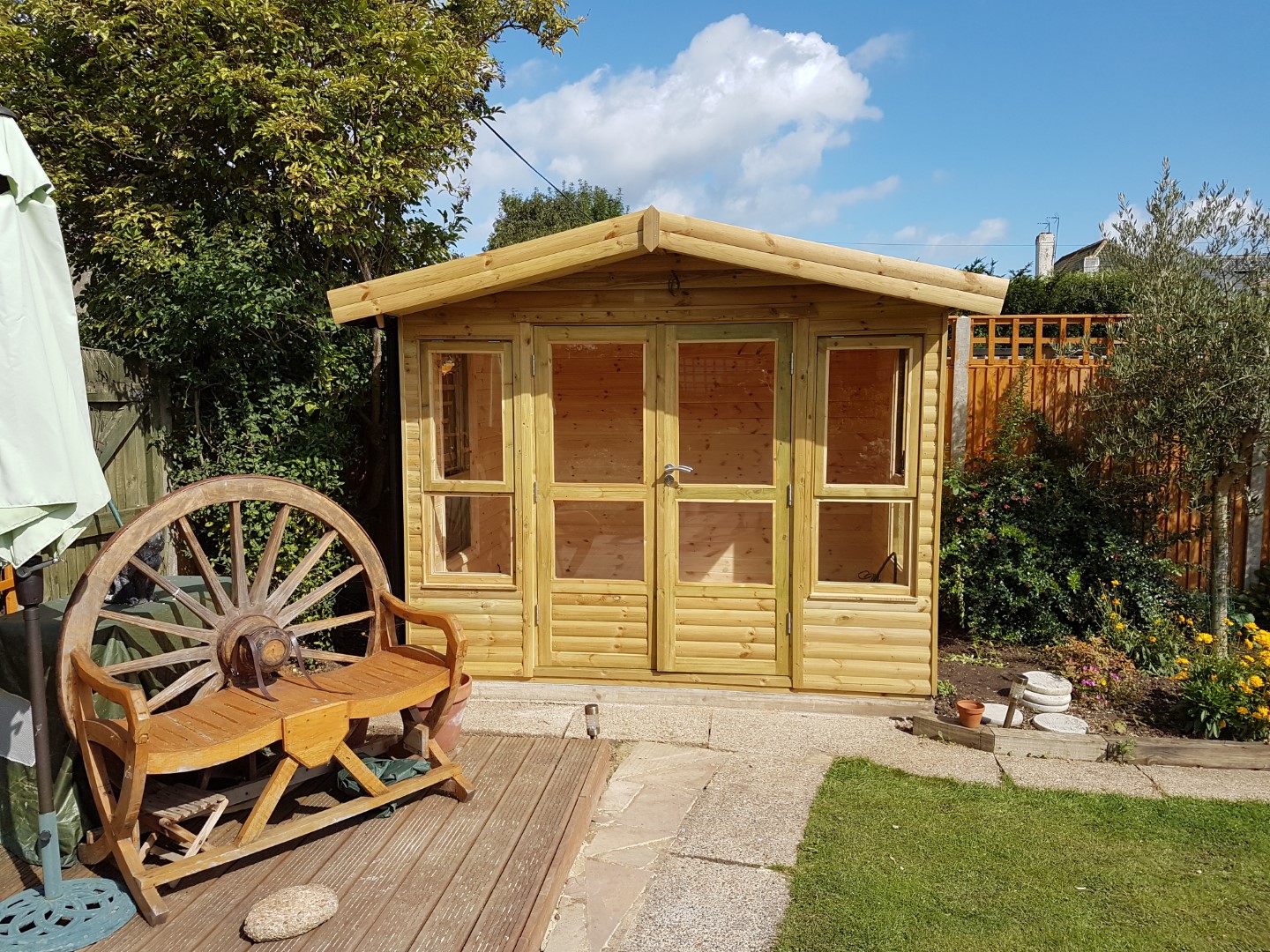

LOGLAP CABINS
All the buildings are made from tongue and groove pressure treated loglap with a tar paper lining.
Size | Cabin | Optional Torch-on
felt Red, Black or Green |
6’x4′ | £880 | £125 |
6’x5′ | £960 | £130 |
6’x6′ | £1065 | £145 |
7’x5′ | £1080 | £145 |
7’x6′ | £1140 | £155 |
8’x6′ | £1230 | £180 |
10’x6′ | £1410 | £215 |
10’x8′ | £1605 | £270 |
12’x6′ | £1615 | £270 |
12’x8′ | £1810 | £310 |
12’x10′ | £2135 | £350 |
14’x8’* | £2060 | £350 |
14’x10’* | £2200 | £390 |
* On buildings where roof bearers span over 14’ check A-frame list
Heights
Apex to the eaves 6’4″
Pent minimum 6’4″
All Include
FREE ASSEMBLY ON A SUITABLE LEVEL BASE
Antique hinges and handles + mortice lock.
Options
Heavy duty felt shingles – black or red – see separate price list
Opening windows £55
Verandas including cladding the underside of the roof:
Up to | 8′ | 10′ | 12′ | 14′ |
2′ side balustrade | £185 | £230 | £275 | £315 |
3′ side balustrade | £255 | £290 | £340 | £395 |
3′ side and front balustrade | £290 | £335 | £390 | £440 |
4′ side and front balustrade | £355 | £395 | £450 | £495 |
ALL PRICES INCLUSIVE OF V.A.T.
