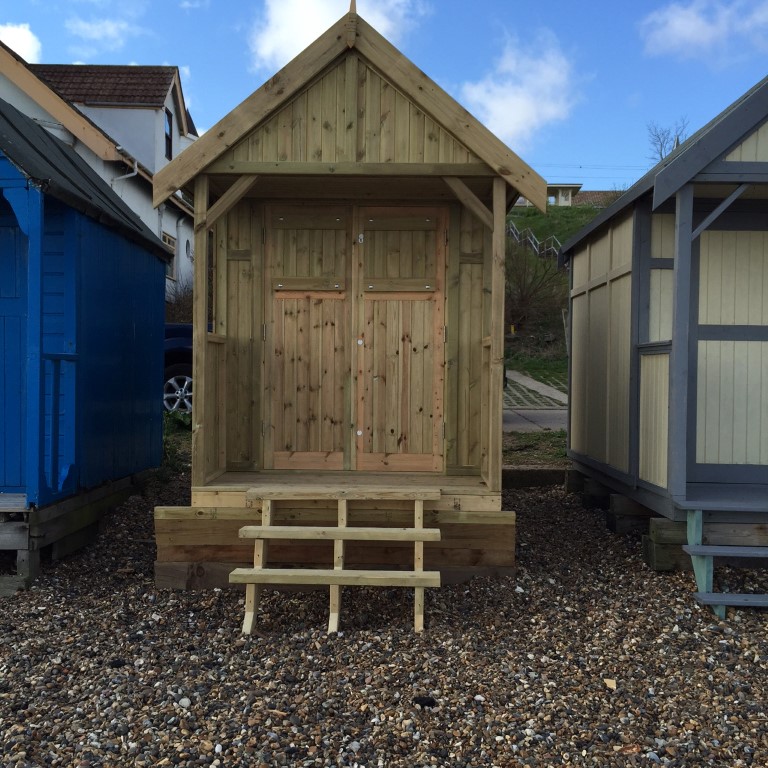

Herne Bay
Beach Hut Drawings - Open a PDF containing drawings the various options available
Beach Hut Drawings - Open a PDF containing drawings the various options available
Size:
9'6" x 6' (285mm x 1830mm) including verandah
Apex Height:
102” (2590mm)
Eaves 76” (1930mm)
Double Doors:
48” x 70” (1220mm x 1780mm) Double, framed, ledged and braced. Stainless steel butt hinges, yate lock, galvanised Brenton bolts or galvanized hasp and staple top and bottom on outside, 4” galvanized tower bolts on inside.
Traditional: 3 mortice locks
Verandah:
30” x 72” (760mm x 1830mm)
Cladding:
Standard: Tongue and groove loglap 1”x 4” (25mm x 100mm)
Traditional: vertical tongue and groove v-joint ¾" x 4" (19mm x 100mm) cladding with prepared external frame
Framing:
Eased edge 1½”x 2” (38mm x 50mm)
Roof:
½” (11mm) OSB board
Roofing felt:
20kg green polyester mineral felt
Floor:
22mm x 120mm pressure treated tongue and groove timber
Floor joists:
2” x 4” (50mm x 100mm)
Lining:
Breathable membrane
Nails:
Stainless steel
Options:
Security shackle kit, torch-on felt, top glazed doors and shutters
Click a button below to open the price list. Drawings for each type can be found on the Specifications tab.
Tankerton
CCC-Tank-SK02A
Apex Height:
102” (2590mm)
Eaves 76” (1930mm)
Double Doors:
Double framed, ledged and braced 52” x 70” (1345mm x 1780mm) Stainless steel butt hinges, yate lock, 2 no. hasps including padlocks and top glazed with timber shutters.
Single Door:
Single framed, ledged and braced (760mm x 1780mm) with stainless steel butt hinges, yate lock and 2 no. dead locks.
Traditional: 3 mortice locks
Verandah:
Pressure treated smooth up deckboard, PAR newell posts and plain balustrade.
Cladding:
Tongue and groove shiplap ¾”x 4” (19mm x 100mm) or Tongue and groove loglap 1”x 4” (25mm x 100mm)
Framing:
Eased edge 1½”x 2” (38mm x 50mm)
Roofing felt:
20kg green polyester mineral felt
Floor:
22mm x 120mm pressure treated tongue and groove timber
Floor joists:
2” x 4” (50mm x 100mm)
Lining:
Breathable membrane
Nails:
Stainless steel
Options:
See prices lists
Click a button below to open the price list. Drawings for each type can be found on the Specifications tab.
>
Whitstable
Apex Height:
Apex 102” (2590mm)
Eaves 76” (1930mm)
Door:
Single door 30” x 70” (760mm x 1780mm)
Double door 52” x 7 0” (1345mm x 1780mm)
Stainless steel butt hinges, night latch, Mortice deadlocks or galvanized brenton bolts
Verandah:
Optional
Cladding:
Tongue and groove shiplap ¾” x 4” (19mm x 100mm)
Tongue and groove loglap 7/8” x 4” (22mm x 100mm)
Framing:
Eased edge 1½” x 2” (38mm x 50mm)
Roof:
½” (11mm) OSB board
Roofing felt:
20kg green polyester mineral felt
Floor:
¾” (18mm) plyboard
Floor joists:
1½” x 2” (38mm x 50mm)
Options:
Galvanised security shackle kit, torch-on felt, optional verandah, shuttered window units, part or full glazed doors and shutters
Double door building 3.05m x 3.05m (10’ x 10’) no verandah. Includes a pair of mortice and tennon double doors, stainless steel butt hinges, yale lock and 2 heavy-duty hasps & staples (including padlocks). A pair of windows each side of the door with removable shutters or top third of doors glazed with removable shutter. Loglap or shiplap cladding fixed with stainless nails.
Hut on the beach £3170
Deck £840
Hut behind wall £3170
Deck £1120
Options | |
Base - 9 no 150mm x 150mm (6” x 6”) posts with 47mm x 100mm (2” x 4”) bracing | £1060 |
6’ verandah including decking and balustrade sides | £795 |
10’ verandah including decking and balustrade sides | £925 |
Double steps up to 1.22m (4’) wide | £250 |
Single steps | £180 |
Gate inc. padlock | £105 |
Galvanised security bar | £290 |
Fixed window either side of door or top third of doors inc. removable shutter, opening out | £90 per unit |
Single opening-in window, opening-out shutter unit | £310 |
Double opening-in window, opening-out shutter unit | £455 |
Bi-fold doors inc. centre post and 3 dead locks | £1150 |
Torch-on felt - red, black or green - mixed colours add 25% | £400 |
Tongue and groove clad and insulate walls (50mm fibreglass) and roof (20mm Celatex) | £1315 |
Option - 3 key-a-like locks | £175 |
Clear old hut, veranda and base (no asbestos, empty beach hut) | £545 |
Single door building As above, but a single tennon and mortice door including stainless steel butt hinges, yale lock, 2 dead locks (1 top, 1 bottom). A triple window beside the door with one opening window and drop down shutter.
ALL PRICES INCLUSIVE OF V.A.T.
Hut Guidance for Improved Disability Access - Open a PDF containing advice on adapting your hut
Thanet
Apex Height:
Apex 96” (2440mm)
Eaves 84” (2135mm)
Door:
76” (1930mm) high double doors – Variable width depending upon size of hut. Galvanised tee hinges, 2 brenton bolts. Hinged flap forming porch when doors open
Cladding:
Tongue and groove loglap 7/8” x 4” (22mm x 100mm)
Framing:
Eased edge 1½” x 2” (38mm x 50mm)
Roof:
½” (11mm) OSB board
Roofing felt:
20kg green polyester mineral felt
Floor:
5/8” (15mm) plyboard
Floor joists:
1½” x 3 (38mm x 75mm)
Options:
1.5m square, 1.8m square, 2.4m square, Seasonal erection, dismantling and storage service
THANET
Double ledged and braced doors with a flap which forms a shelter when the doors are opened. Price includes erected on promenade. Beach erection will incur an extra charge and will need a base at extra cost:
Options | |
1.5m x 1.5m | £770 |
1.8m x 1.8m | £920 |
2.4m x 2.4m | £1120 |
Dismantle and winter storage, re-erect on promenade | £330 |
Leveling base on sand | £90 |
ALL PRICES INCLUSIVE OF V.A.T.
