Low Maintenance Cedral Bespoke Buildings
Quinneys offer Marley Cedral lap cladding to our buildings with the option of uPVC double glazed doors and windows in white or rosewood woodgrain finish and with tapco roof slate, these buildings are very low maintenance with fire resistant pre-coloured cladding.
We can lay a concrete base with steel enforcing especially to suit the Cedral lap buildings, ideal to take the extra weight. Alternatively we can lay an upgraded platform base.
The Cedral lap buildings consist of:
- CLS 100x50mm (nominal) pressure treated C16 graded timber framing
- Sheathing plyboard to CLS
- Novia breathable membrane
- 38x50mm (nominal) pressure treated timber batten for Cedral lap weatherboard
- Marley Cedral lap weatherboard
- All Marley trims and vents
- EPDM rubber and trims – 20 year manufacturers warranty on all rubber
- 1 no pair uPVC white French doors and windows-additional finishes available
- 28mm double glazed units
Buildings are made to your requirements, we will be happy to advise on the design and any planning/Building control restrictions.
Fibre cement Cedral Lap weatherboard external cladding is the ideal low maintenance, rot free alternative to traditional timber weatherboarding. With the visual appeal of natural timber, simplicity of installation and resistance to rot, Cedral Lap weatherboard is an attractive, low maintenance alternative to PVCu.
Cedral Lap weatherboard can be supplied in a range of 21 factory applied solid colours and 2 woodstain finishes – providing an aesthetic option to suit many project requirements.
6.164m x 3.665m Apex roof, Blue/Grey C10 Cedral lap building/shed with Anthracite upvc double glazed windows and French doors.
Tapco 809 Red rock roof slate.
1st and 2nd fix electrics.
Reverse cycle air-con

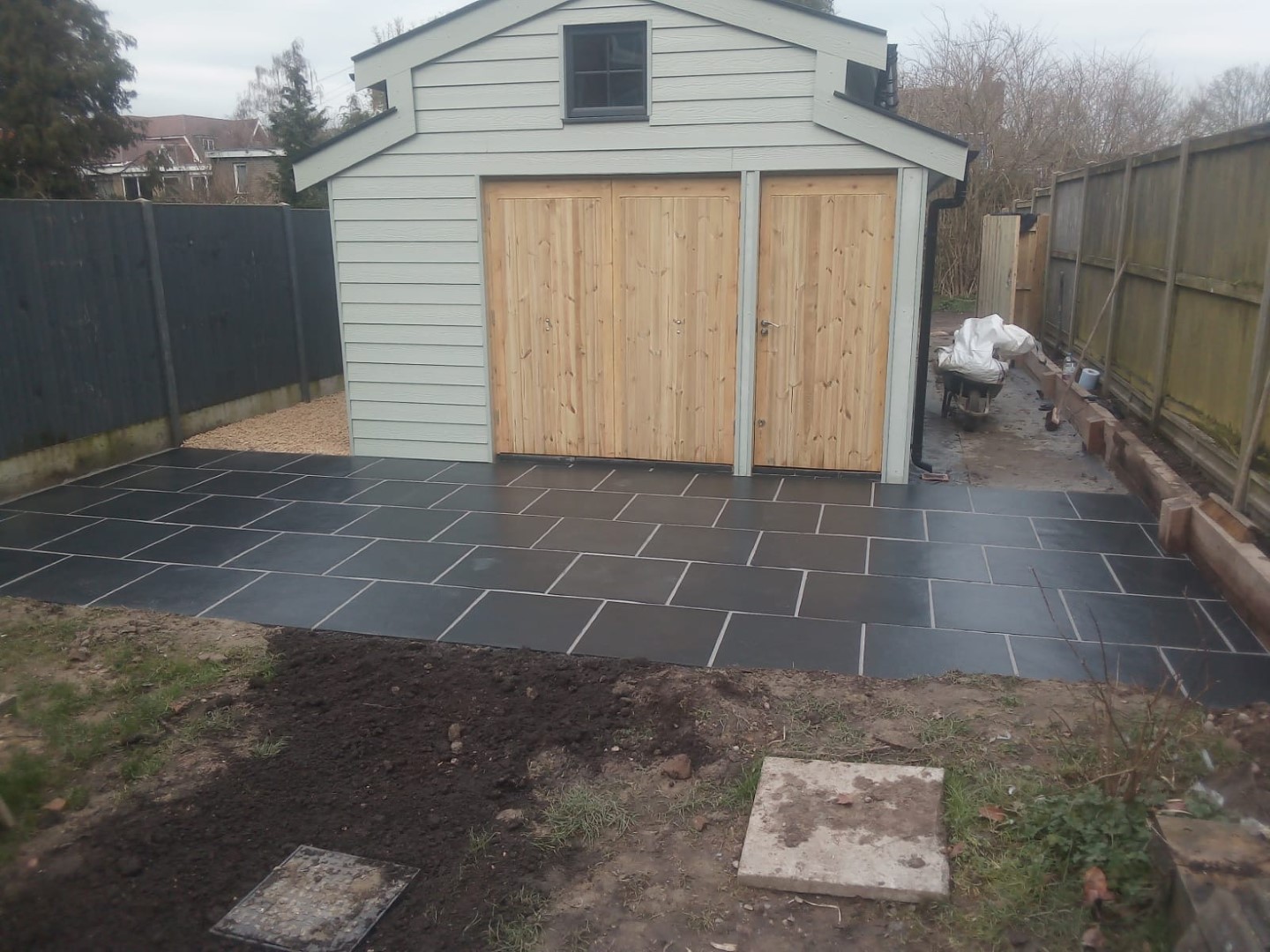

Cedral lap bespoke building. Built to customers design. The project included: concrete base and soakaway,C06 Cedral cladding, pewter grey Tapco roof slate, Black limestone slabs with resin bond joints, yellow Cotswold stone, Framed/ledge and braced doors (ready to stain), Anthracite feature window.

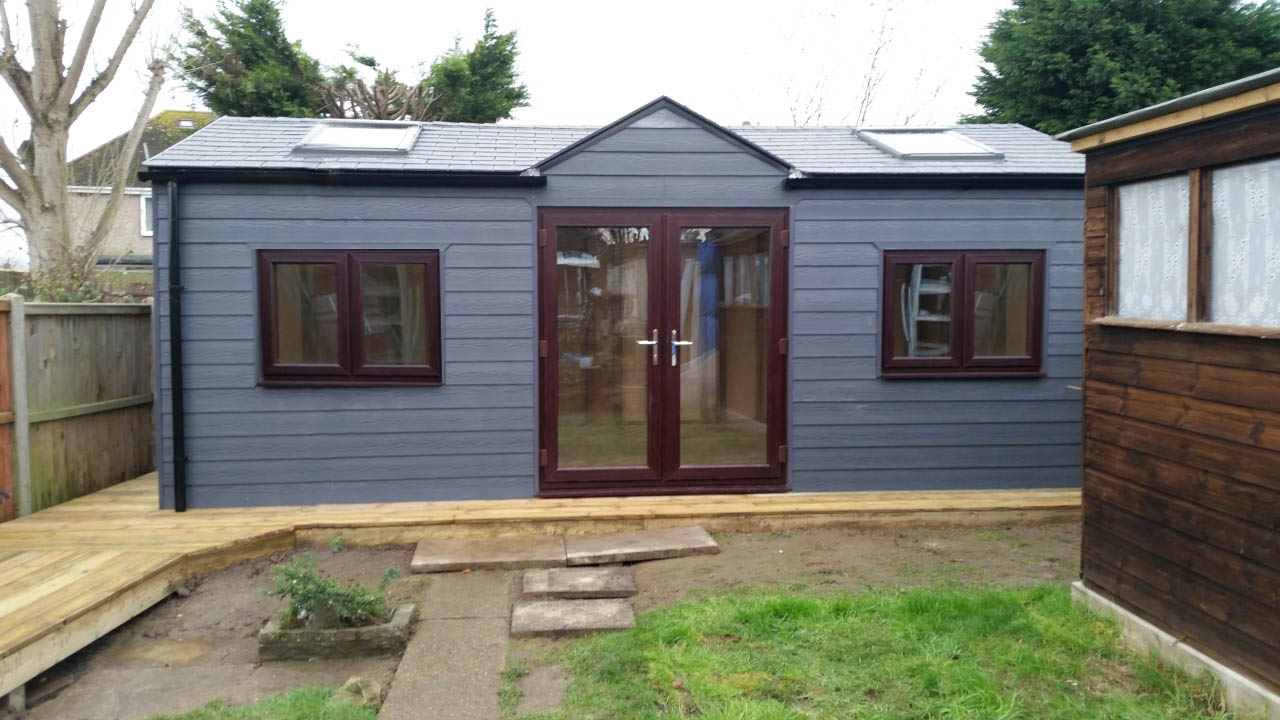

5.0m x 3.0m C10 Blue/Grey Cedral lap building with anthracite uPVC double glazed french doors/side lights, rubber roof with 2x sky lights, shed section, laminate flooring, Reverse cycle air conditioning. All Electrical works (down lights/sockets etc)
4.0m x 3.5m Cedral lap building completed and ready for others to decorate. This C05 Grey Cedral lap clad mono pitch roof building is complete with reverse cycle air-condition unit that heats and cools for different seasons. Laminated floor ,Anthracite outer/white inner French doors with side lights and a high level opening window. Rubber roof and trims, walksure decking step.
C51 Silver grey Cedral lap clad building with anthracite outer white inner double glazed doors and windows. fully insulated with 70mm PIR insulation and covered with plaster board. All electrical works and reverse cycle air condition unit as part of the project.
We removed the existing concrete garage and constructed this 5.2m x 3.0m mono pitch roof Co5 Grey Cedral lap building with Anthracite uPVC double glazed French doors with side lights and a matching panel shed door. Rubber roofing with black trims. This fully insulated building is finished internally with 12.5mm plaster board fill and tapped ready for others to decorate.
4.0m x 3.0m Mono pitch roof building in fire resistant pre-coloured C05 Cedral lap cladding with Matching trims and anthracite (outer/white inner) double glazed French doors and window unit. EPDM rubber roof with anthracite trims. The building is fitted to a Quinneys upgraded platform base that consists of concrete posts supporting a pressure treated floor.
The building is insulated with 70mm pir foam board and finished with 12.5mm plasterboard.
4.0m x 3.0m apex roof, C51 silver Cedral lap clad building with matching trims and pewter grey Tapco roof slate. Upvc anthracite Guttering/ doors and windows with dummy bars.
This is our Extra height ape Cedral lap clad building with white uPVC double glazed window units. Tapco roof slate, mezzanine floor, part whitewood internal cladding and part plaster board finish.
This building is also available in various external timber cladding.
This building is available to view on our show site.
This is our Mono pitch (front elevation) C05 grey Cedral lap clad building with anthracite uPVC double glazed windows. Insulated and plaster boarded walls and ceiling. Reverse cycle air condition unit.
This building is available to view on our show site.
We fitted this building for Vincent’s nursery, Herne bay. Co6 grey/green Cedral lap cladding, C01 white soffit and facias, upvc white double glazed doors and windows, Firestone epdm rubber roofing with black upvc trims, reverse cycle cool/heat air-condition unit.
Mono-pitch roof
4m x 2.5m mono-pitch roof,C51 silver grey Cedral lap clad building with uPVC white doors and windows and EPDM rubber roof – insulated and plaster-boarded internally, ready for others to decorate.
Cedral standard apex building
Bespoke building with C05 Grey Cedral lap cladding and matching trims. UPVC anthracite tilt and turn windows/ french doors. Tapco roof slate 804 pewter grey.
Herne bay Pier kiosk/huts – White Cedral lap weatherboard with white symmetric corner trims.
ADVANTAGES
- Class 0 fire rating
- Excellent aesthetics
- Resistant to rot and insects
- Low maintenance
- Easy to install
- Comprehensive range of matching aluminium trims
- Complementary soffit and fascia board available in the 9 best selling Cedral lap colours
C06 Grey/Green Cedral lap cladding and matching trims. uPVC white double glazed windows and single door. Pewter grey tapco roof slate.
Garden office and store in Cedral lap C06 grey/green cladding and uPVC double glazed French doors and windows, EDPM rubber roof.
C10 blue/grey Cedral lap weather board cladding with C15 dark grey corner trims.
C06 grey/green Cedral lap weather board cladding and pewter grey Tapco slate roof. UPVC white double glazed doors and window to hobby room section and pressure treated timber doors to the shed section.
C18 Slate grey Cedral lap weather board and trims.
Black tapco roof slate.
Rosewood woodgrain uPVC windows and French doors.
Centre pivot roof lights.
